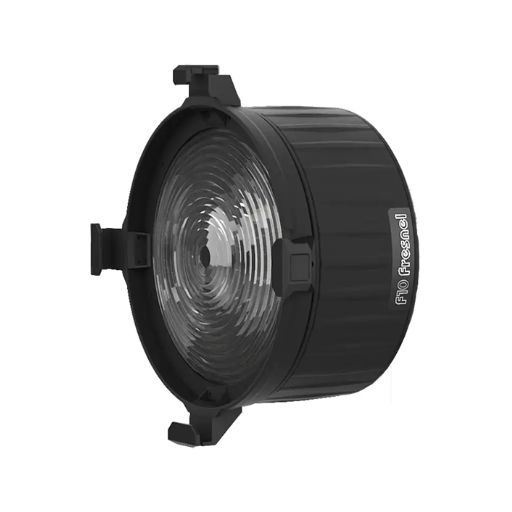

Fresnel F10 Aputure
- Descrizione
Fresnel Lens Diameter: 250mm / 9.843in
Accessory Slot Diameter: 332.88mm / 13.106in
Accessory Mount: Bowens Mount
Output Increase (w/ LS 600d Pro): 340%
Dimensions (Collapsed / Flood 45°): 346*340.46*172.48mm / 13.622*13.404*6.79in
Dimensions (Extended / Spot 15°): 346*340.46*250.35mm / 13.622*13.404*9.856in
Weight (F10 Fresnel): 3850g / 8.488lbs
PHOTOMETRICS
Distance: 1m: 3m: 5m
LS 600d Pro w/ F10 Fresnel (Flood 45°): 89,200 (lux): 11,400 (lux): 4,260 (lux)
LS 600d Pro w/ F10 Fresnel (Flood 45°): 8,289 (fc): 1,063 (fc): 395 (fc)
LS 600d Pro w/ F10 Fresnel (Spot 15°): 224,200 (lux): 29,300 (lux): 10,580 (lux)
LS 600d Pro w/ F10 Fresnel (Spot 15°): 20,836 (fc): 2,723 (fc): 983 (fc)
Fresnel Lens Diameter: 250mm / 9.843in
Accessory Slot Diameter: 332.88mm / 13.106in
Accessory Mount: Bowens Mount
Output Increase (w/ LS 600d Pro): 340%
Dimensions (Collapsed / Flood 45°): 346*340.46*172.48mm / 13.622*13.404*6.79in
Dimensions (Extended / Spot 15°): 346*340.46*250.35mm / 13.622*13.404*9.856in
Weight (F10 Fresnel): 3850g / 8.488lbs
PHOTOMETRICS
Distance: 1m: 3m: 5m
LS 600d Pro w/ F10 Fresnel (Flood 45°): 89,200 (lux): 11,400 (lux): 4,260 (lux)
LS 600d Pro w/ F10 Fresnel (Flood 45°): 8,289 (fc): 1,063 (fc): 395 (fc)
LS 600d Pro w/ F10 Fresnel (Spot 15°): 224,200 (lux): 29,300 (lux): 10,580 (lux)
LS 600d Pro w/ F10 Fresnel (Spot 15°): 20,836 (fc): 2,723 (fc): 983 (fc)
